F2200HL Bimetal Cylinder Liner product introduction

1.100% interchangeable with the most common brands of mud pumps.

2.Long lasting service life up to 800 hours.

3.Could be used around 7500 psi of working pressure.

4.Customized Liners according to drawings can be produced, too.

Available production models

Bomco：

F-500、F-800、 F-1000、 F-1300、 F-1600、F-1600HL、F2200HL

Hong Hua：

HHF-500、 HHF-800、 HHF-1000、HHF-1300, HHF-1600、HHF2200HL、3NB1300F

IDECO：

T-500、T-800、 T-1000、 T-1300、 T-1600、MM-450、MM-500-F、MM-600-A、MM-700-F、MM-1000

LS-National Mud Pumps：

3NB-500C、3NB-1000C、3NB-1300C、 3NB-1600

National：

7-P-50、 8-P-80、 9-P-100、 10-P-130、12-P-160、14-P-220、JWS-165-L、JWS-340 JWS-400 C-250 C-350 K-380 K-500-A G-700 K-700 N-1000 N-1300 N-1600

Oilwell：

350-PT、 A-650-PT、A-850PT、 A-1100-PT、 A-1400-PT、 A-1700-PT、HD-1400-PT、HD-1700-PT、612-P、212-P、214-P、218-P、700-P、816-P、818-P、1000-P

Soilmec：

7T500、 7T508、 8T650

TSC：

WF-400、 WF-450、 WF-700、 WF-1000、 WF-1300、 WF-1600、WF-2000

Weatherford：

MP-5、MP-8、 MP-10、 MP-13、 MP-16

Wirth：

TPK-1000、TPK-1300 、TPK-1600、TPK-2000 、TPK-2200

Russian Pumps：

UNBT-950、UNB-600、8T650、UNBT650、NBT600、UNBT1180、UNBT1180L

Upetro:

3PN-1000 3PN-1600 3PN-1300 3PN-2000

OPI:

350-D,350-GD,500-DC,700-HDL,1000HDL

TFI:

BH-800 F-500 -F800 F-1000 F-1300 F-1600

Lexco/Ewco:

W-250-C WH440 W446 W600 WH600 WH770 W1100 WH1312 W1612 W1712 W2000 W2214 W2215

Loadmaster:

LSF-500 LSF-800  LSF-1000  LSF-1300  LSF-1600

Soilmec:

7T500  7T508  8T650

Dragon:

440HP 660HP

Graet American:

GA-550 GA-750

American Block：

K-800、K1000、K1300、K1600、K2200

Brewster：

B-1000-T、 B-1100-T、 B-1300-T、 B-1600-T

Drillmec：

7TS600、8T800、9T800、9T1000、10T1300、12T1600、14T-2200、8D1S

Ellis Williams (Lewco)：

E447、E2200、W446、W440、Etc

Gardner Denver：

PZ-7、PZ-8、 PZ-9、 PZ-10、 PZ-11、PAH275

All conventional pump type accessories can be produced

Product Pictures

Product Description

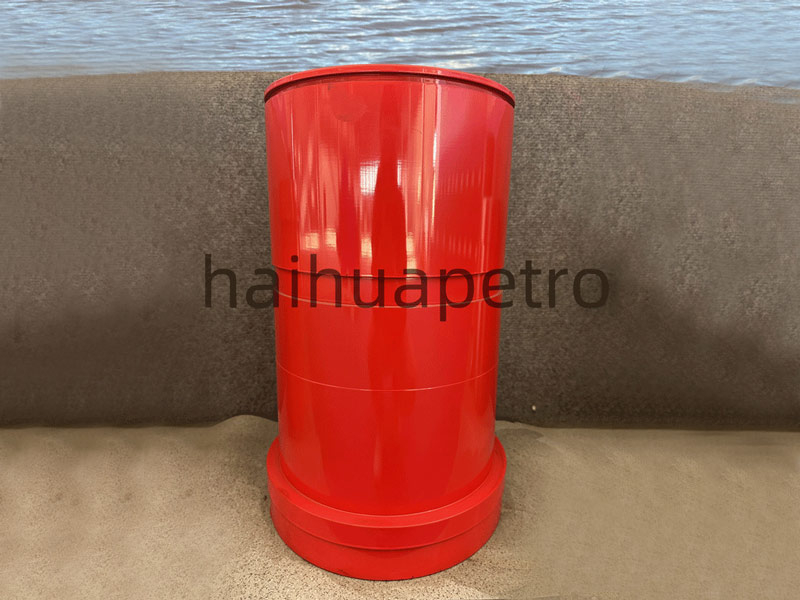

F2200HL Bimetal Cylinder Liner is a key wearing part in mud pump, which has superior wear resistance and corrosion resistance. It uses internal and external mounted structural design, combined with high-quality materials, to cope with the harsh working environment, to ensure long-term stable operation of the equipment.

Main feature

Advanced bimetal design

Bimetal Cylinder Liner consists of two parts: inner cover and outer cover. The jacket is made of high-quality 45# carbon structural steel, ensuring good mechanical strength and durability. The inner casing uses high-chromium cast iron with 25%-28% chromium content. After heat treatment, the hardness of the inner hole reaches HRC60 or more, which greatly enhances the wear resistance and corrosion resistance.

Excellent wear resistance

The hardness and wear resistance of the high chromium cast iron inner sleeve are significantly improved, so that the cylinder liner can work stably for a long time under high pressure and high friction environment, and the working efficiency and service life of the mud pump are greatly improved.

Excellent corrosion resistance

The high chromium content of the inner casing and the heat treatment process provide excellent corrosion resistance, maintaining stable performance even in mud environments containing corrosive substances, reducing maintenance requirements and replacement frequency.

long-life

Under normal operating conditions, the service life of the cylinder liner can reach more than 800 hours, greatly reducing equipment downtime and operating costs.

Sum up

Bimetal Cylinder Liner, with its innovative inner and outer casing construction and application of high-quality materials, provides excellent wear and corrosion resistance, ensuring efficient and stable operation of mud pumps in harsh working environments. Its long service life and reduced maintenance costs make it an important part of improving equipment reliability and operational efficiency.
