Product Description

The Flashboard Assy is an important part of the mud pump, mainly used to control the flow of fluid during the suction and discharge of the mud pump. Mud pump is widely used in oil drilling, geological exploration and other industries, and the insert plate assembly is an important part to ensure the normal operation of the pump body. The following is the product introduction of the insert board assembly:

The Flashboard Assy is a key component in the mud pump. It includes inserts, springs, washers and other components to control the flow of fluid in and out of the pump chamber. Through the opening and closing of the insert plate, the mud suction and discharge are realized, so as to ensure the normal operation of the mud pump.

Main feature

Wear resistance: Products are usually made of high-strength alloy materials, with excellent wear resistance and corrosion resistance, and can work stably in harsh working environments for a long time.

High sealing: The well-designed sealing structure ensures the sealing performance of the insert plate during opening and closing, effectively preventing mud leakage.

Easy to operate: The design of the product makes the operation simple and fast, easy to maintain and replace.

Strong adaptability: suitable for different types and specifications of mud pumps, able to operate stably under a variety of working conditions.

Function and effect

The main function of the Flashboard Assy is to control the flow of fluid during the suction and discharge of the mud pump. When the mud pump is working, the plunger will automatically open or close according to the reciprocating movement of the pump piston or plunger, ensuring that the mud can smoothly enter the pump chamber and be discharged at the appropriate time.

As an important part of the mud pump, Flashboard Assy ensures the efficient operation of the mud pump under various working conditions with its advantages of wear resistance, high sealing, easy operation and strong adaptability.

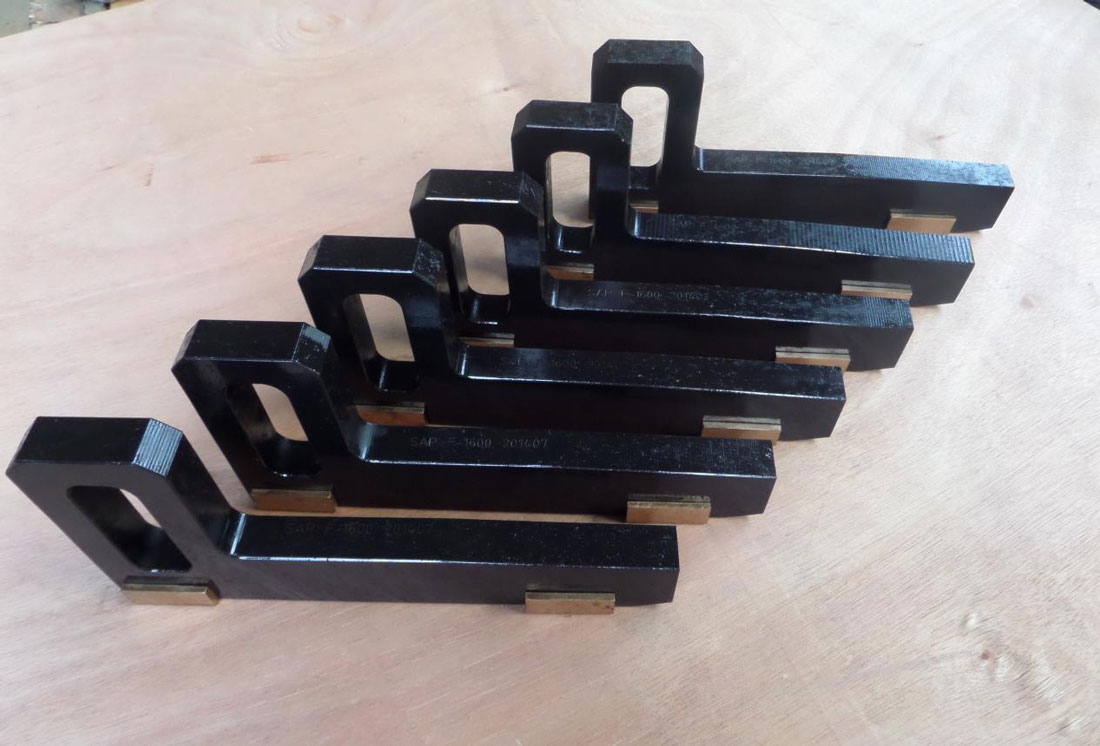

Product Pictures

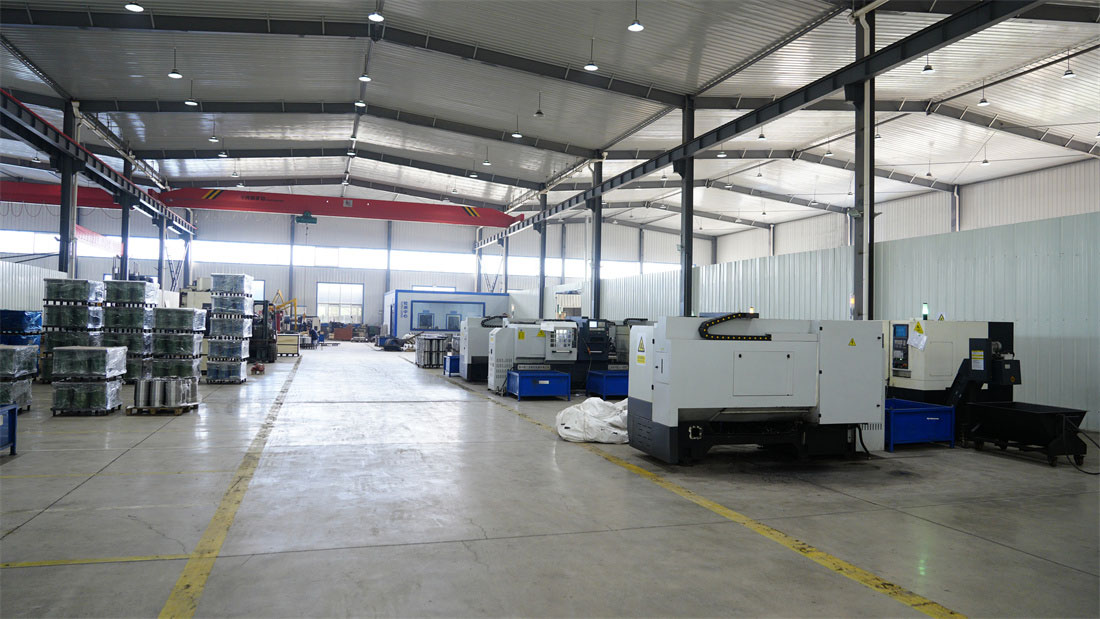

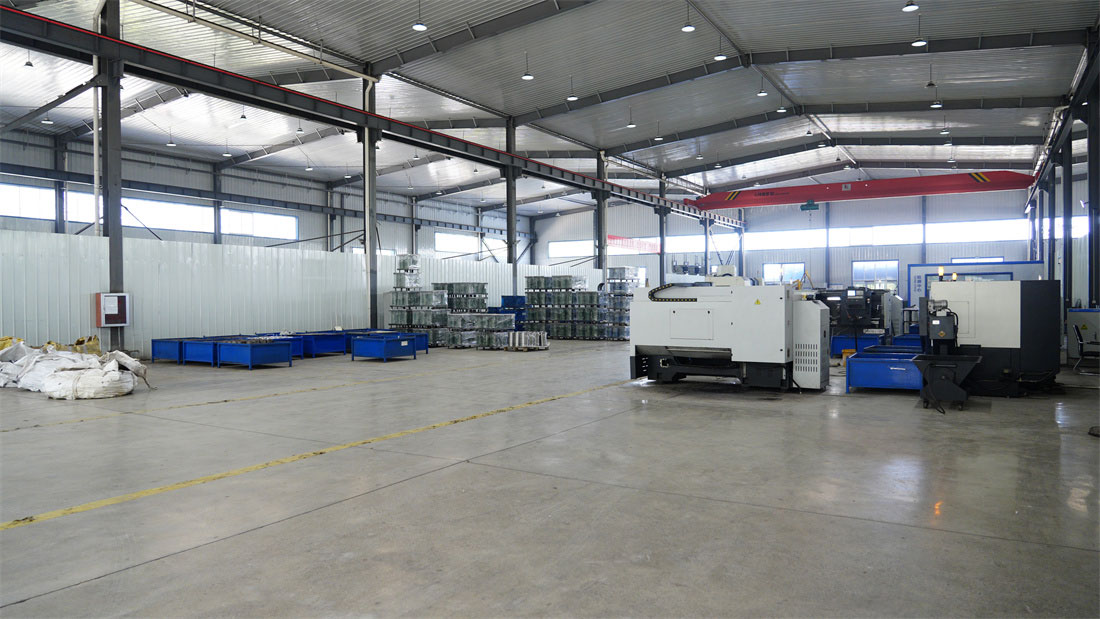

Factory environment

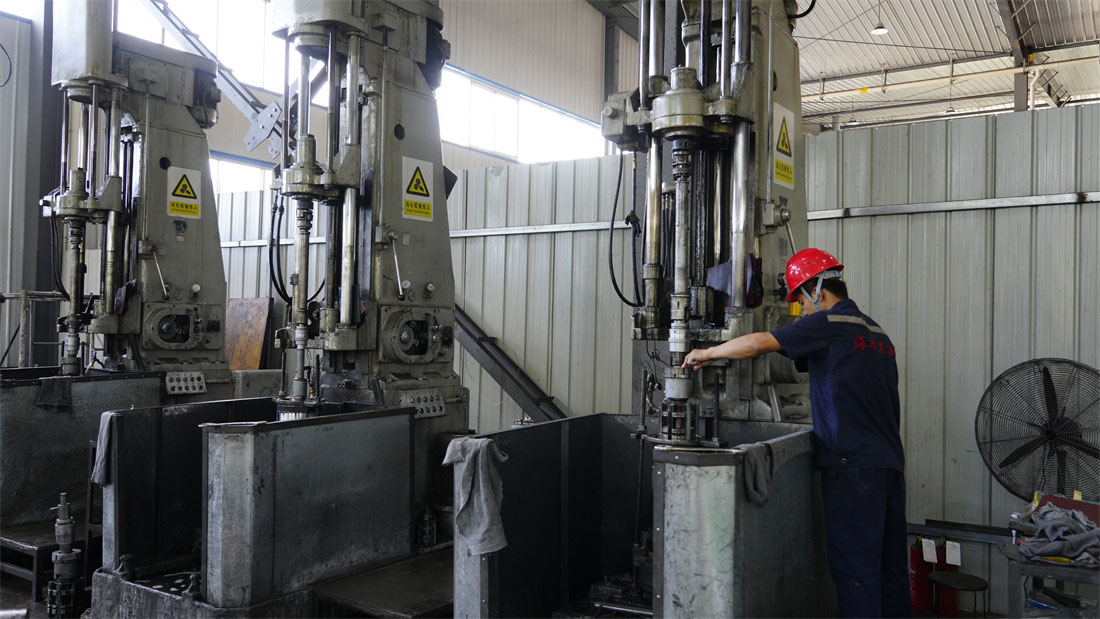

Production equipment

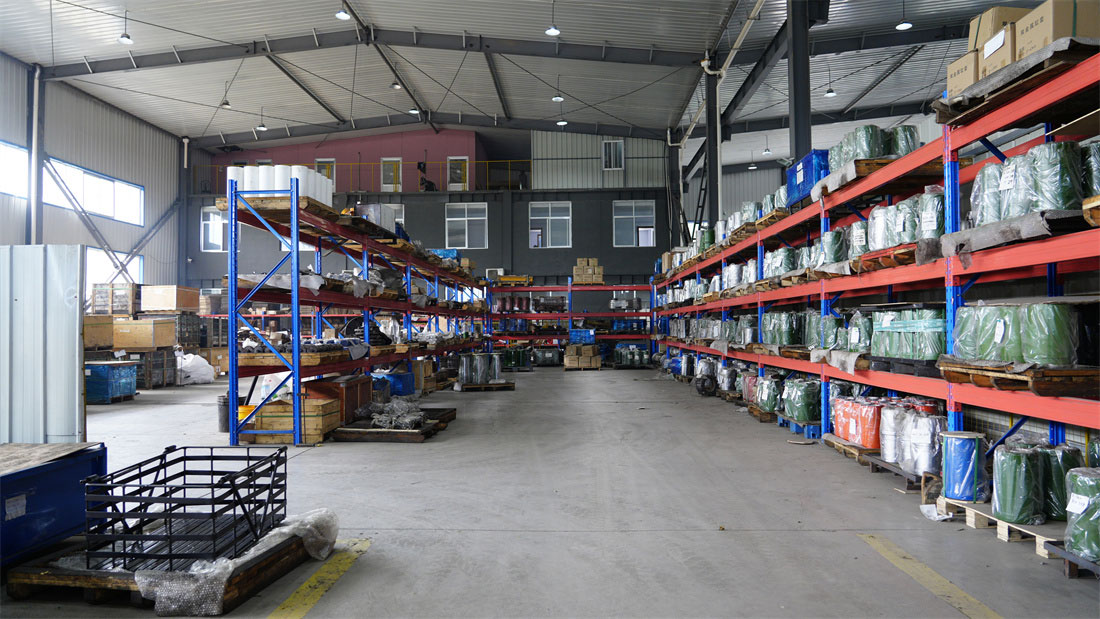

Factory scene
