Product attribute

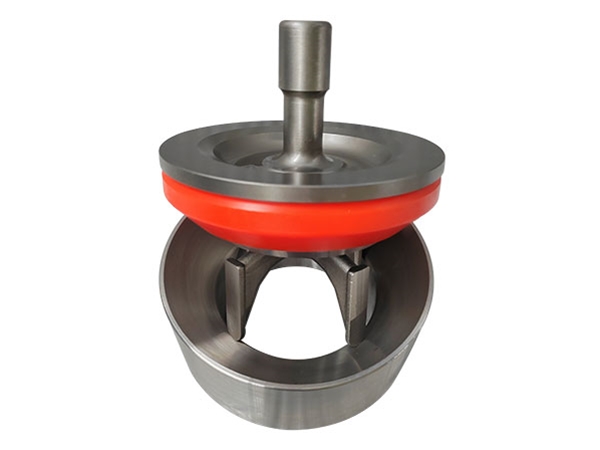

Mud Pump Valve Assy include valve body, valve seat, valve insert (valve rubber).

Type: Rough-neck valve, three-web valve, four-web valve

Brand: NATIONAL, GD, EMSCO, OILWELL, IDECO, DRILLMEC, WEATHERFORD, BOMCO, TSC, EWCO, AMERICAN BLOCK, EWECO, HONGHUA, LS NOV, WIRTH, RONGSHENG

Product Description

The Valve Body Seat is an important part of the valve. The following is a detailed introduction to the valve body seat:

First, function

Sealing action: The Valve Body Seat is closely fitted with the spool to ensure that the valve can effectively prevent fluid leakage when it is closed. It can withstand a certain pressure, ensure the tightness of the valve, and prevent the media from leaking out of the valve.

Support spool: Provide stable support for the spool, so that the spool can accurately move within the valve, to achieve the valve opening and closing operation. At the same time, the structural design of the valve seat will also affect the movement characteristics of the valve core and the flow control performance of the valve.

Guide fluid flow: The internal shape and channel design of the Valve Body Seat can guide the flow direction of the fluid, reducing fluid resistance and energy loss. It can optimize the fluid dynamic performance of the valve, improve the flow coefficient of the valve and adjust the accuracy.

Second, material

Metal materials: such as cast iron, cast steel, stainless steel, etc. Metal body seat has high strength and corrosion resistance, suitable for all kinds of high pressure, high temperature and corrosive media valves.

Non-metallic materials: such as rubber, plastic, ceramics, etc. Non-metal valve seat has good sealing performance and corrosion resistance, suitable for some special medium valves, such as chemical, food, medicine and other industries.

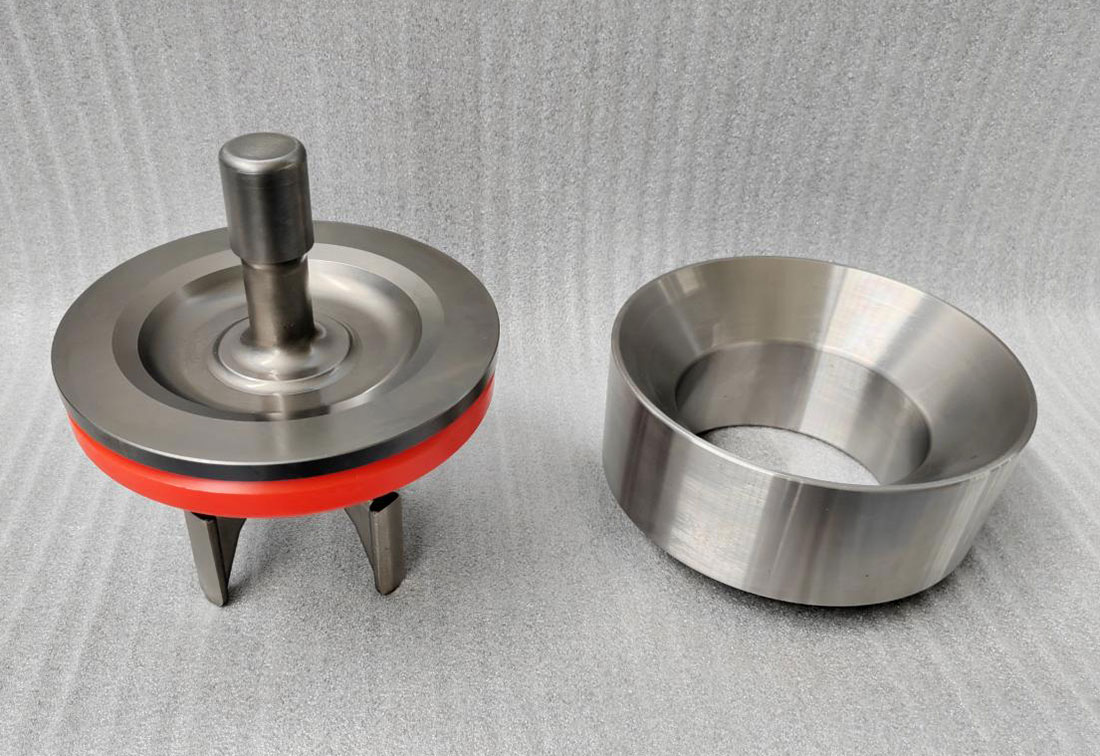

Product Pictures

Suitable Pump Models

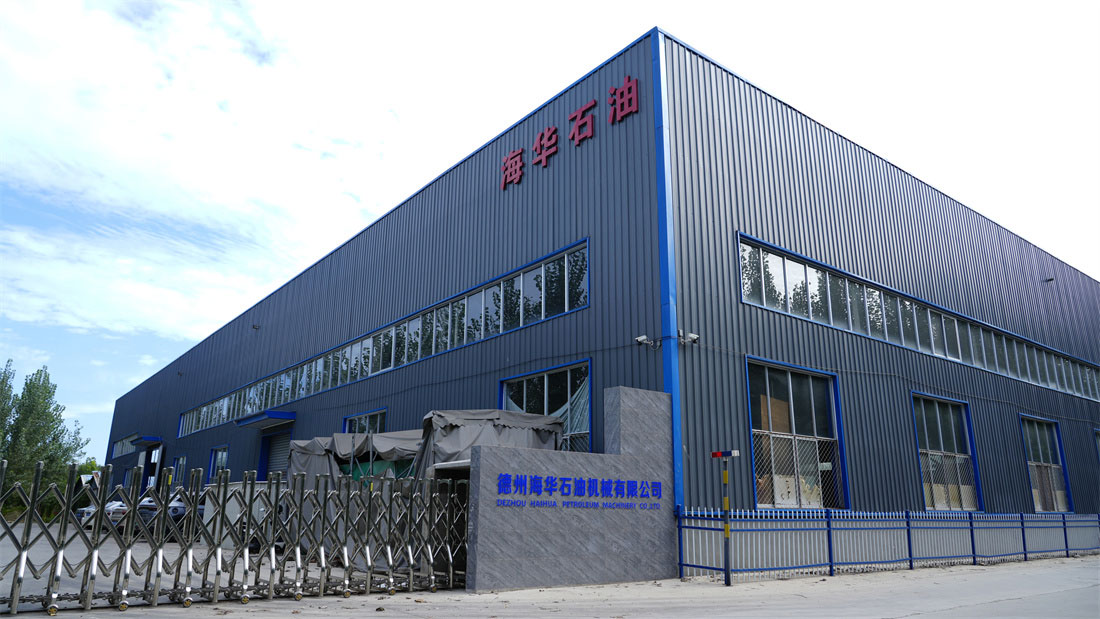

Factory environment

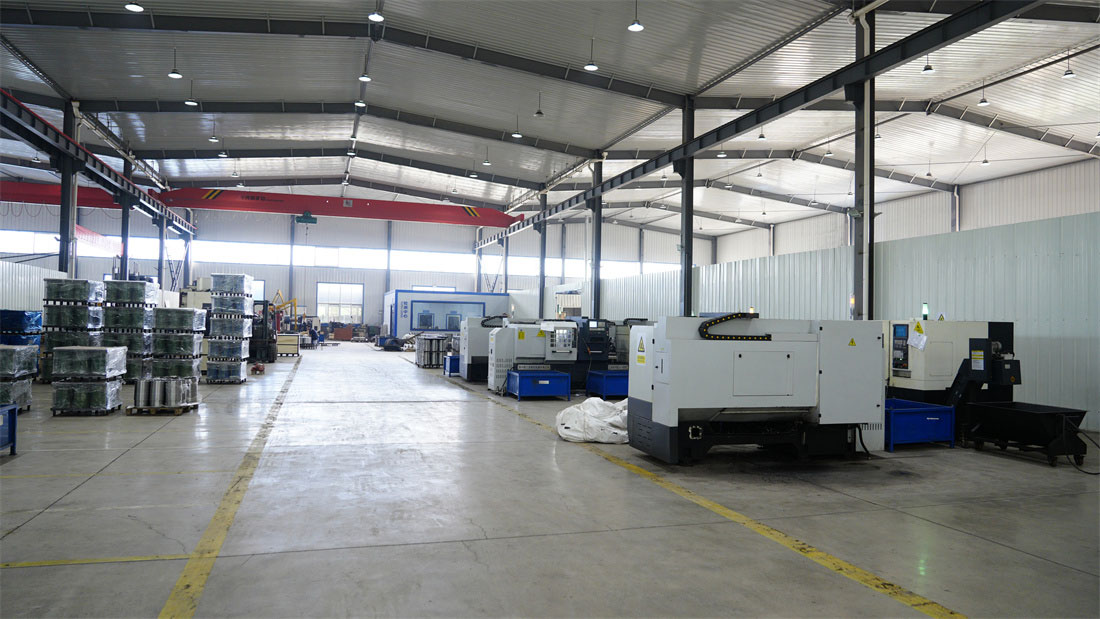

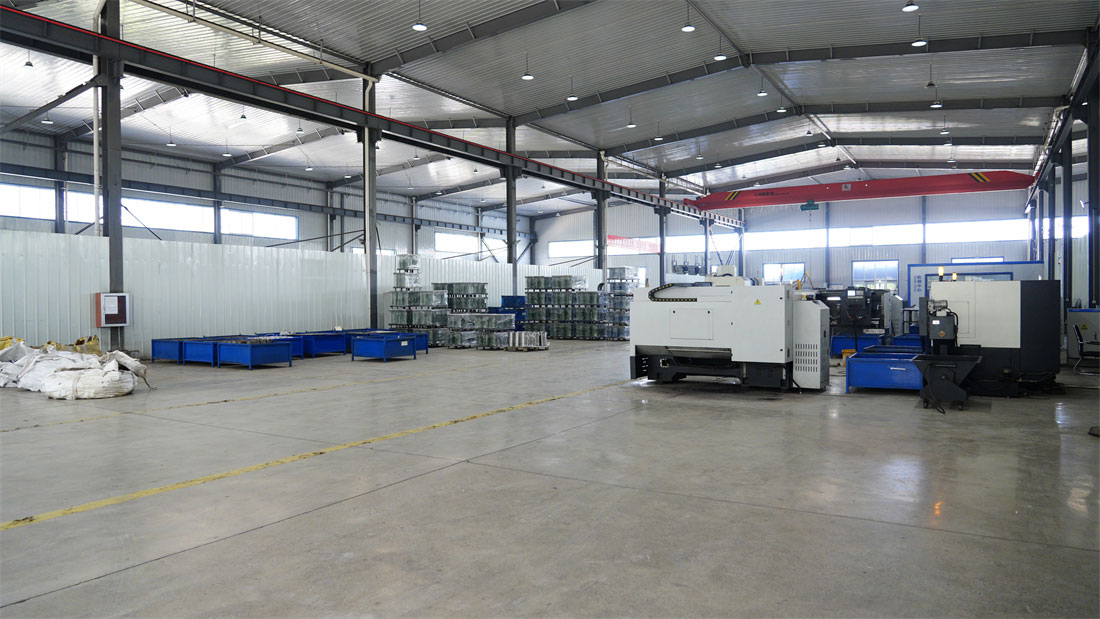

Production equipment

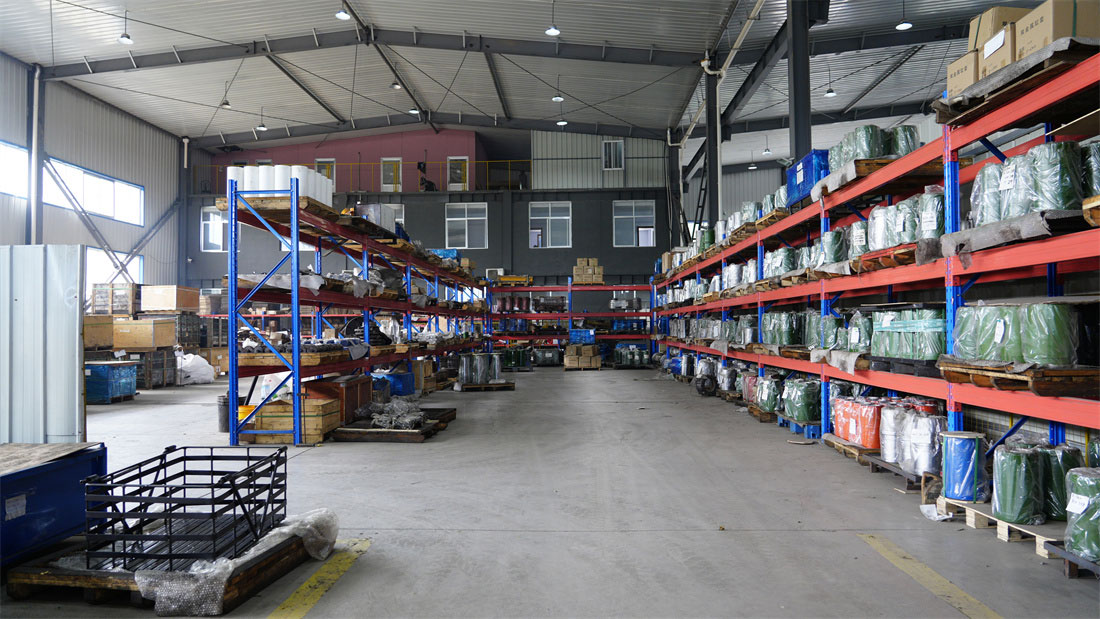

Factory scene
