Product Description

The Guide, Crosshead is an important part of the hydraulic end of the mud pump, which assumes the function of guiding and protecting the piston or plunger during the pumping process. In the oil drilling, geological exploration and other industries, mud pump is an indispensable equipment, and the guide is one of the key components to ensure the efficient and stable operation of mud pump.

Guide, Crossheads are usually made of high-strength alloy materials, which are precision machined and heat treated to ensure excellent wear and corrosion resistance. Such a design can not only withstand the impact of high-pressure mud, but also maintain good performance in long-term use, extending the service life of the guide.

In design, the Guide, Crosshead usually has a smooth surface and precise size to reduce the friction resistance of the piston or plunger in the reciprocating motion, thereby reducing energy loss and improving the efficiency of the pump. In addition, reasonable guide design can also reduce the wear of the piston or plunger, further enhancing the overall durability of the pump.

Installing the guide is a task that requires careful operation, and the correct installation method can ensure a tight fit between the guide and the pump body to prevent leakage or vibration during the operation. For this reason, the instructions should be carefully read before installation, and the installation should be carried out in accordance with the specified method.

Regular inspection and maintenance of the guide is also very necessary. Through the regular inspection of the guide, the wear can be found in time and the necessary replacement can be made to avoid greater failures caused by the damage of the guide. This not only helps to maintain the normal operation of the pump, but also effectively extends the service life of the entire equipment.

In short, the high-quality Guide, Crosshead is the basis to ensure the continuous and stable operation of the mud pump under complex conditions. Through the use of high-quality materials, advanced manufacturing processes and scientific design concepts, the guide not only improves the pumping efficiency, but also brings higher economic benefits to users.

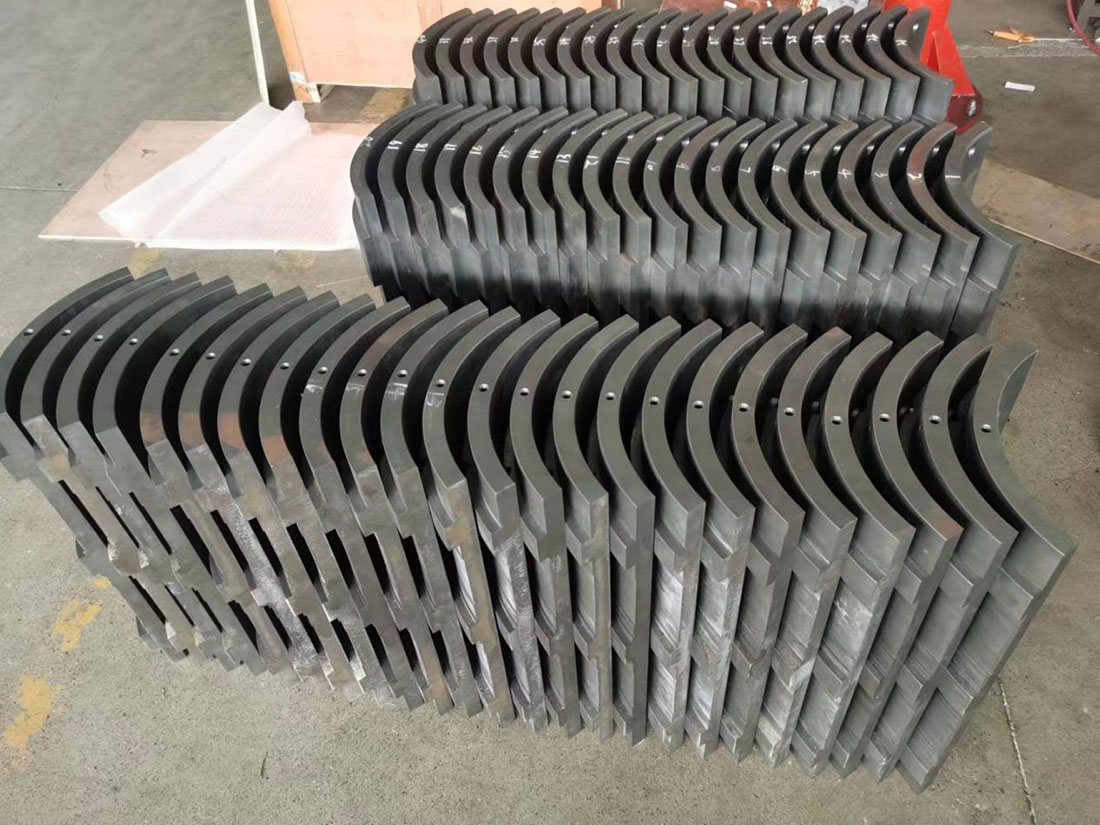

Product Pictures

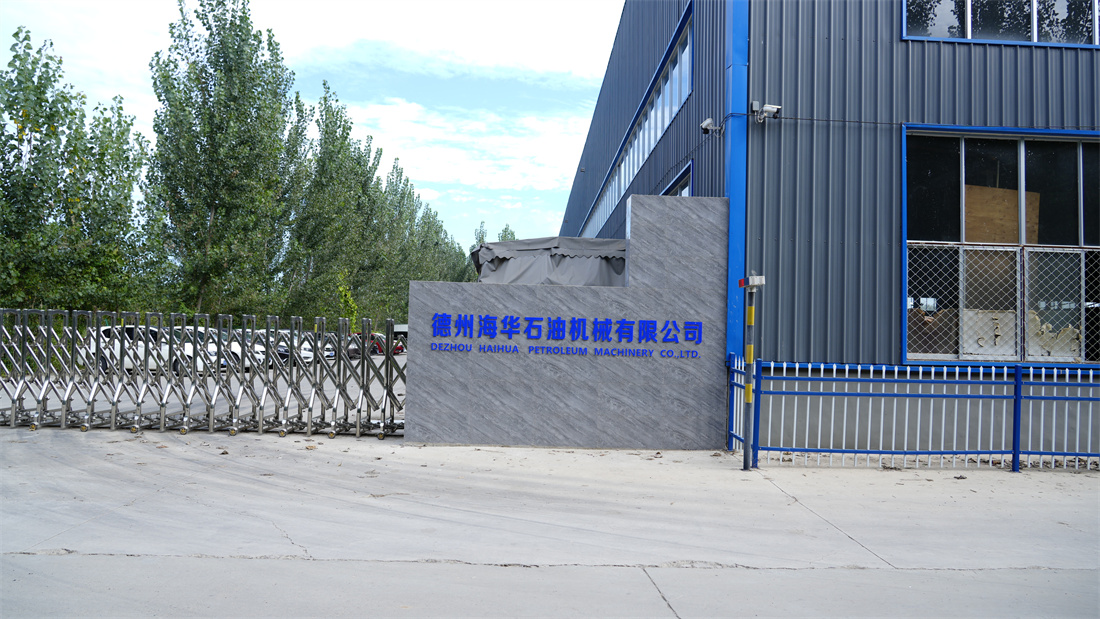

Factory environment

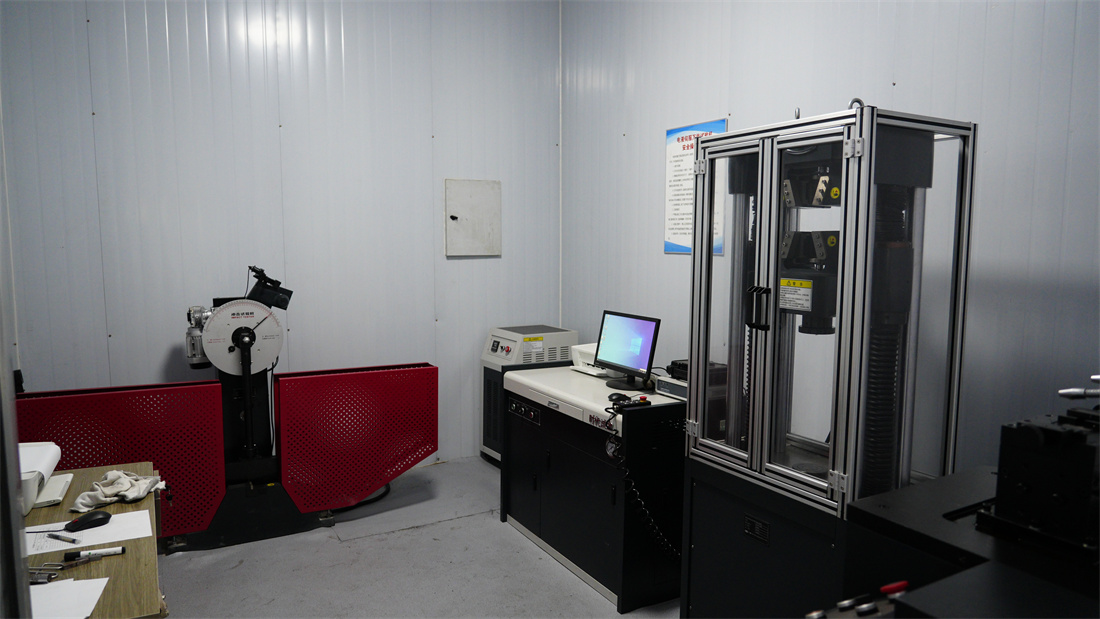

Production equipment

Factory scene
